GPO (AS 3112) or IEC-Lock outlets protected by MCBs, Fuses, or Thermal Overloads
Bring individual outlet control to your next PDU configuration.
Each outlet can have an individual circuit breaker offering complete control of your power delegation.
| 19″ 2RU 5x outlets | 19″ 3RU 10x outlets | Vertical 10x outlets | 19″ 1RU or 0.5m 6x outlets | |
| GPO 10/15A outlets: | Yes | Yes | Yes | Yes |
| IEC-Lock C13 10A outlets: | Yes | Yes | – | Yes |
| MCB option: | Yes | Yes | Yes | – |
| Fuse option: | – | – | – | Yes |
| Thermal Overload option: | – | – | – | Yes |
| Optional Master MCB/Fuse/TO: | Yes | Yes | Yes | Yes |
| Outlet MCB/Fuse/TO ratings: | 1 – 15A | 1 – 15A | 1 – 15A | 1 – 10A |
| Total Rating (Amps): | 10 – 50A | 10 – 50A | 10 – 50A | 10 – 30A |
| Mounting: | 19″ 2RU | 19″ 3RU | 19″ 1RU or 0.5m Vertical (0RU) | |
| Panel Size (mm): | 483w 88h 55d | 483w 132h 55d | 52w 1370h 58d | 483w 44h 55d or 44w 553h 52d |
 |
19″ 2RU – 5x GPO 10A outlets with MCBs on each outlet.
|
 |

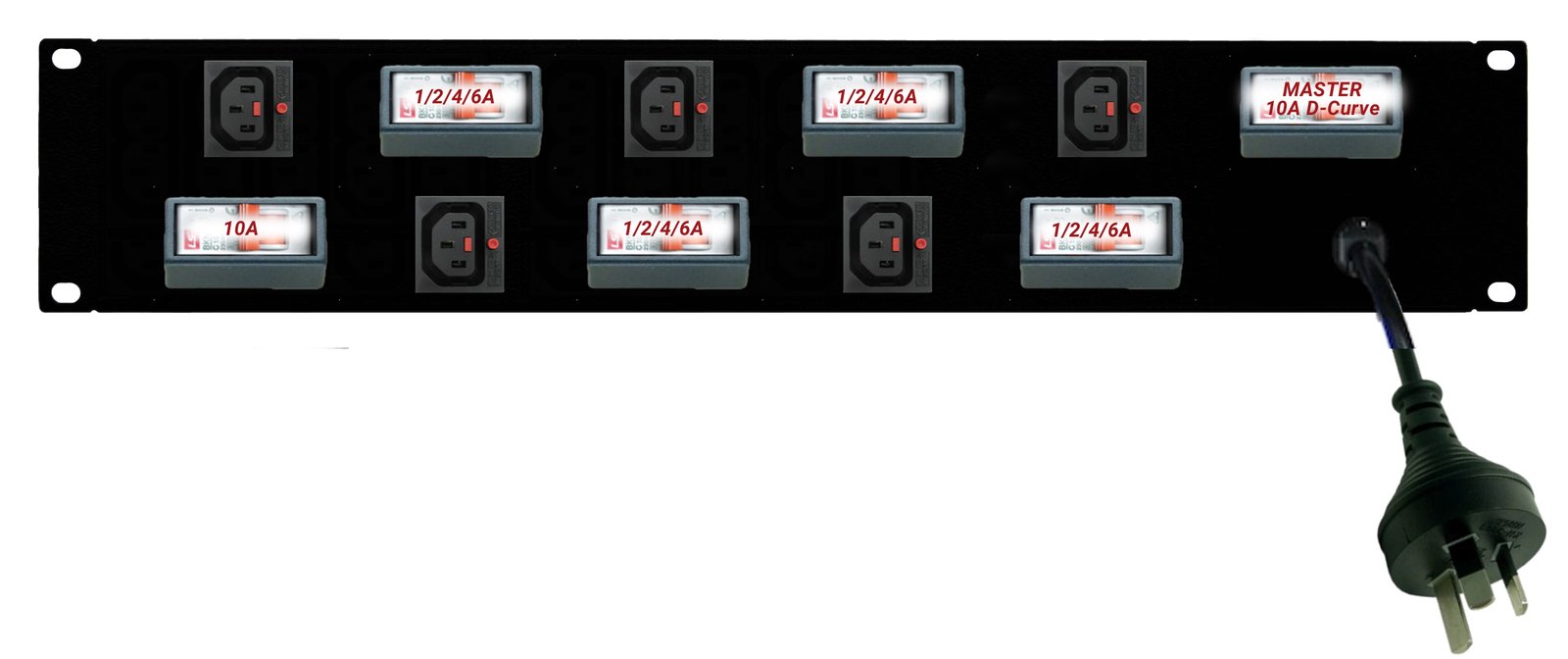

19″ 2RU – 5x IEC-Lock C13 10A outlets with MCBs on each outlet.
|
 |

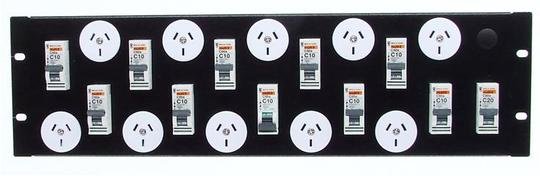

19″ 3RU – 10x GPO 10A outlets with MCBs on each outlet.
|
 |

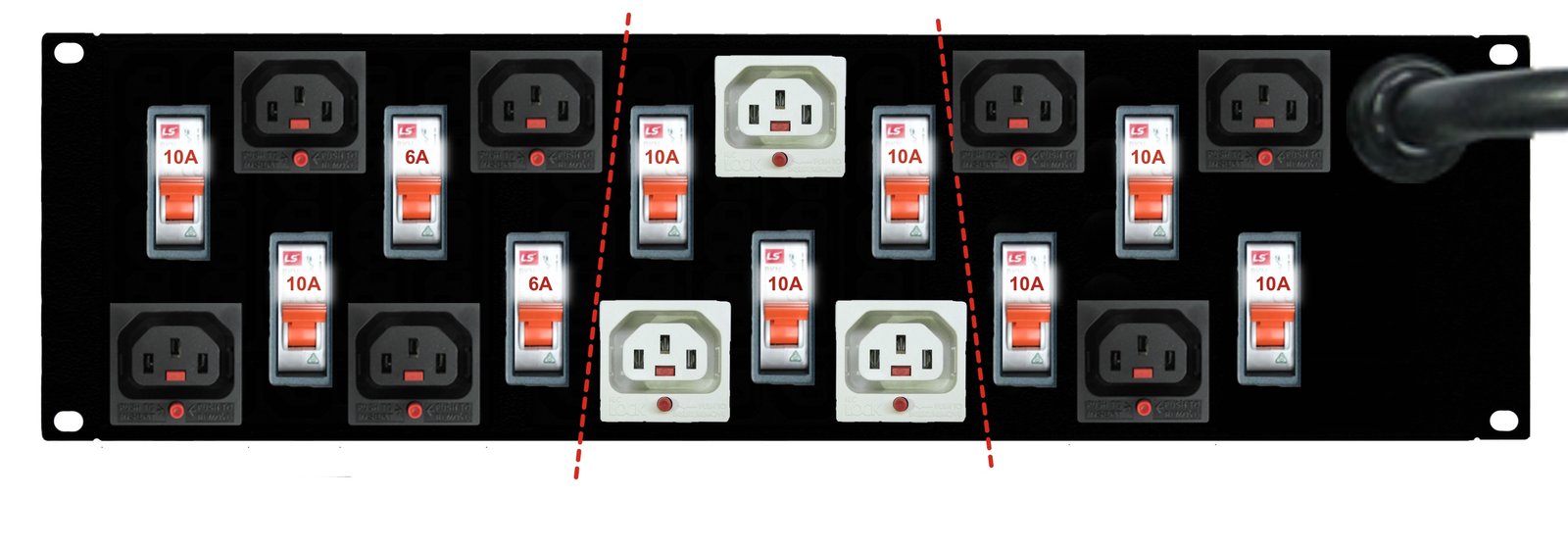

| 19″ 3RU – 10x IEC-Lock C13 10A outlets with MCBs on each outlet. |
