Simplify rack environmental management with enLogic plug and play sensors. Every enLogic Rack PDU and Inline Energy Meter is designed to accommodate up to 6 external sensor probes with user customizable alarms and warnings.
Each sensor is engineered with an embedded analog-digital signal processing microchip for extended range and high accuracy operation.
Every sensor probe is factory calibrated and designed for easy installation, setup, and identification.
| Code | Name | Desc | Documents | |
|---|---|---|---|---|
| EA9102 | Temperature Sensor |  | enLogic‘s temperature and humidity sensors are designed to add comprehensive environmental monitoring to any enLogic EN Series PDU or EZ Series Inline Energy Meter. | Install Guide |
| EA9103 | Temperature & Humidity Sensor | The Temperature and Humidity Sensor Monitors the temperature and Relative Humidity in the Data Center and transfers the data to the control center. | Install Guide | |
| EA9105 | 3 Temperature & 1 Humidity Sensor |  | enLogic‘s temperature and humidity sensors are designed to add comprehensive environmental monitoring to any enLogic EN Series PDU or EZ Series Inline Energy Meter. | Install Guide |

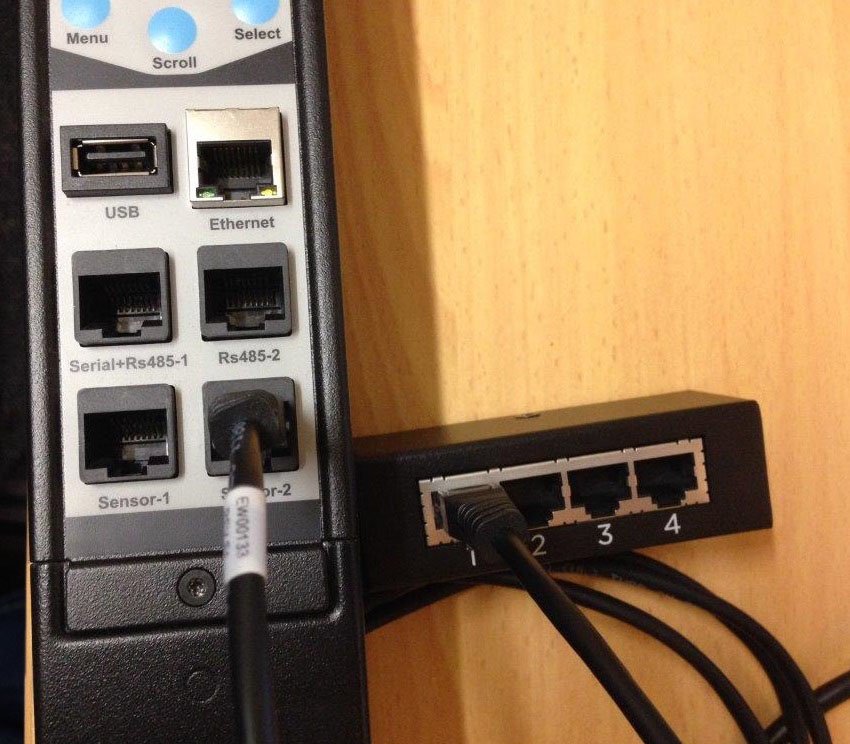

| EA9106 | 3 Sensor Input Hub |  | enLogic‘s 3 Sensor Input Hub allows for 3 additional sensor ports to be added to either sensor port of any enLogic EN Series PDU or EZ Series Inline Energy Meter. | |
| EA9110 | Dry Contact Input Cable |  | enLogic‘s Dry Contact Cable is designed to monitor conditions such moisture detection, motion, door sensor, and access through external dry contact sensors. | Install Guide |
| EA9111 | Spot Leak Sensor |  | Spot fluid sensor monitors a remote location for the presence of any liquid with resistivity of less than 2M Ohms per cm (including distilled water) and transfers the data to the control center. | Install Guide |

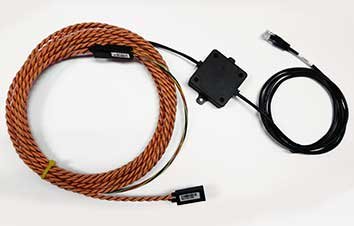

| EA9112 | Rope Leak Sensor |  | The Rope Fluid Leak Sensor monitors for early detection of liquid with a resistivity of less than 2M Ohms per cm (including distilled water) in the monitored area along the entire length of the rope. | Install Guide |
| EA9119 | Serial Communication Cable |  | Serial Communication Cable, RJ-45 to DB-9 | Install Guide |

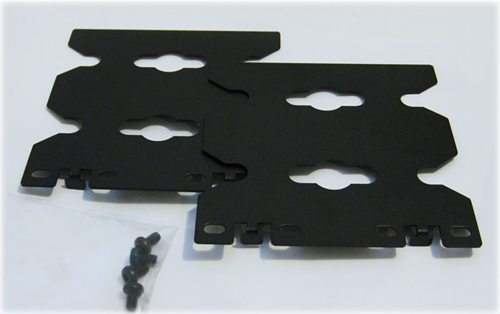

| EA9120 | Mounting Brackets |  | Rittal/HP cabinet bracket | |
| EA9125 | Automatic Rack Light Kit |  | LED Light Strip Sensor | Install Guide |
