PDU: 3phase 400VAC

• 16A per phase only

• Available with or without current overload protection (circuit breakers)

• Available as 19" 1RU - 483w 44h 59d (mm), or 0.5m vertical - 44w 553h 59d (mm)

• Standard input lead length is 3.0m. Other lengths on request

 Data Sheet

• 16, 20, or 32A per phase available

• Available with (as 19" 2RU) or without (as 19" 1RU) current overload protection (circuit breakers)

• 19" 1U - 483w 44h 52d (mm), or 19" 2U - 483w 88h 52d (mm)

• Standard input lead length is 3.0m. Other lengths on request

• 16, 20, or 32A per phase available

• Available with (as 1.3m) or without (as 0.5m or 0.7m) current overload protection (circuit breakers)

• 0.5m - 44w 553h 52d (mm), 0.7m - 44w 770h 52d (mm), or 44w 1370h 52d (mm)

• Standard input lead length is 3.0. Other lengths on request

 IEC-Lock version of above - Data Sheet

• 16, 20, or 32A per phase available

• Available with branch or master/phase current overload protection (circuit breakers)

• available as 1.3m - 44w 1370h 52d (mm), or 1.7m or 48w 1760h 52d (mm)

• Standard input lead length is 3.0m for 1.3m, and 2.0m for 1.7m

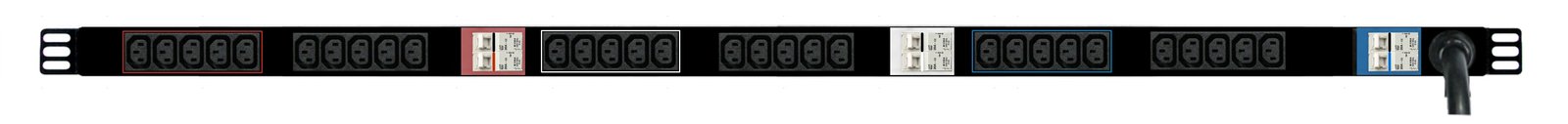

30x IEC C13 10A outlets 1.3m

 Data Sheet - 1.3m

• 16, 20, or 32A per phase available

• Available with or without current overload protection (circuit breakers)

• available as 1.7m or 48w 1760h 52d (mm)

• Standard input lead length is 2m for 1.7m PDUs. Other lengths on request
